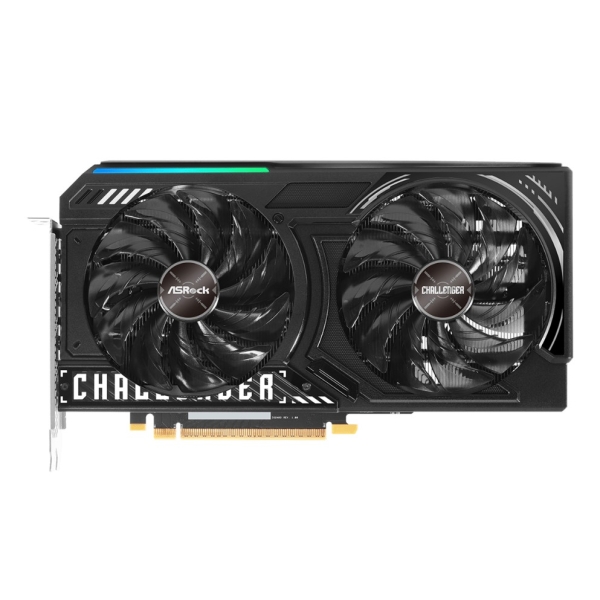

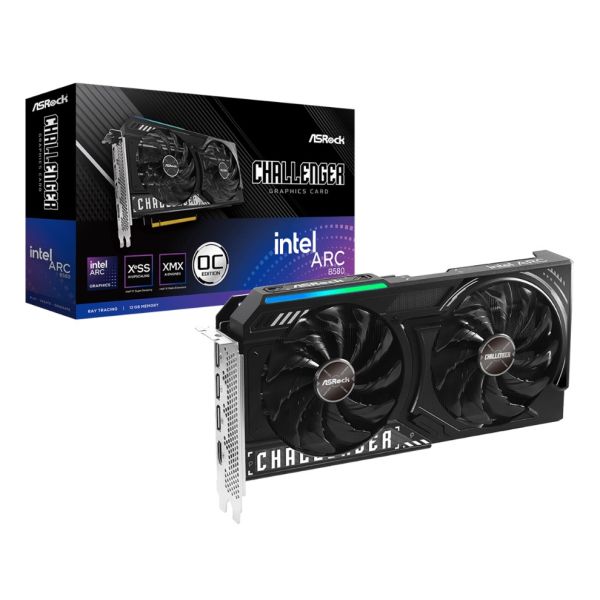

Intel Arc B580 Challenger 12GB OC
B580 CL 12GO

CLOCK: GPU / MEMORY
GPU Clock: 2740 MHz
Memory Clock: 19 Gbps
KEY SPECIFICATION
Intel® Arc™ B580 Graphics
12GB 192-bit GDDR6
Intel® Xe2-HPG Architecture
Intel® Xe Super Sampling 2 (Intel® XeSS 2)
Intel® Xe Matrix Extensions (Intel® XMX)
DirectX® 12 Ultimate
1x 8-pin Power Connectors
3x DisplayPort™ 2.1 / 1x HDMI™ 2.1a
KEY FEATURES
Dual Fan Design
Stylish Metal Backplate
Striped Axial Fan
LED Indicator
0dB Silent Cooling
Super Alloy Graphics Card

Graphics Engine: Intel® Arc B580
Bus Standard: PCI® Express4.0 x 8
DirectX: 12 Ultimate
OpenGL: 4.6
Memória: GDDR6 12GB
Engine Clock: 2740 MHz
Intel® XMX Engines: 160
Compute Units: 20
Memory Clock: 19 Gbps
Memory Interface: 192-bit
Resolution: Digital Max Resolution: 7680 x 4320
Portas de video: 1 x DisplayPort 2.1 (Primary, up to UHBR13.5); 2 x DisplayPort 2.1 (Up to UHBR10); 1 x HDMI 2.1a
HDCP: YES
Multi-view: Até 4 Telas
Recommended PSU: 650W
Power Connector: 1 x 8-pin
Dimensions: 249 x 132 x 41mm, 2-slot
Net Weight: 720 g
